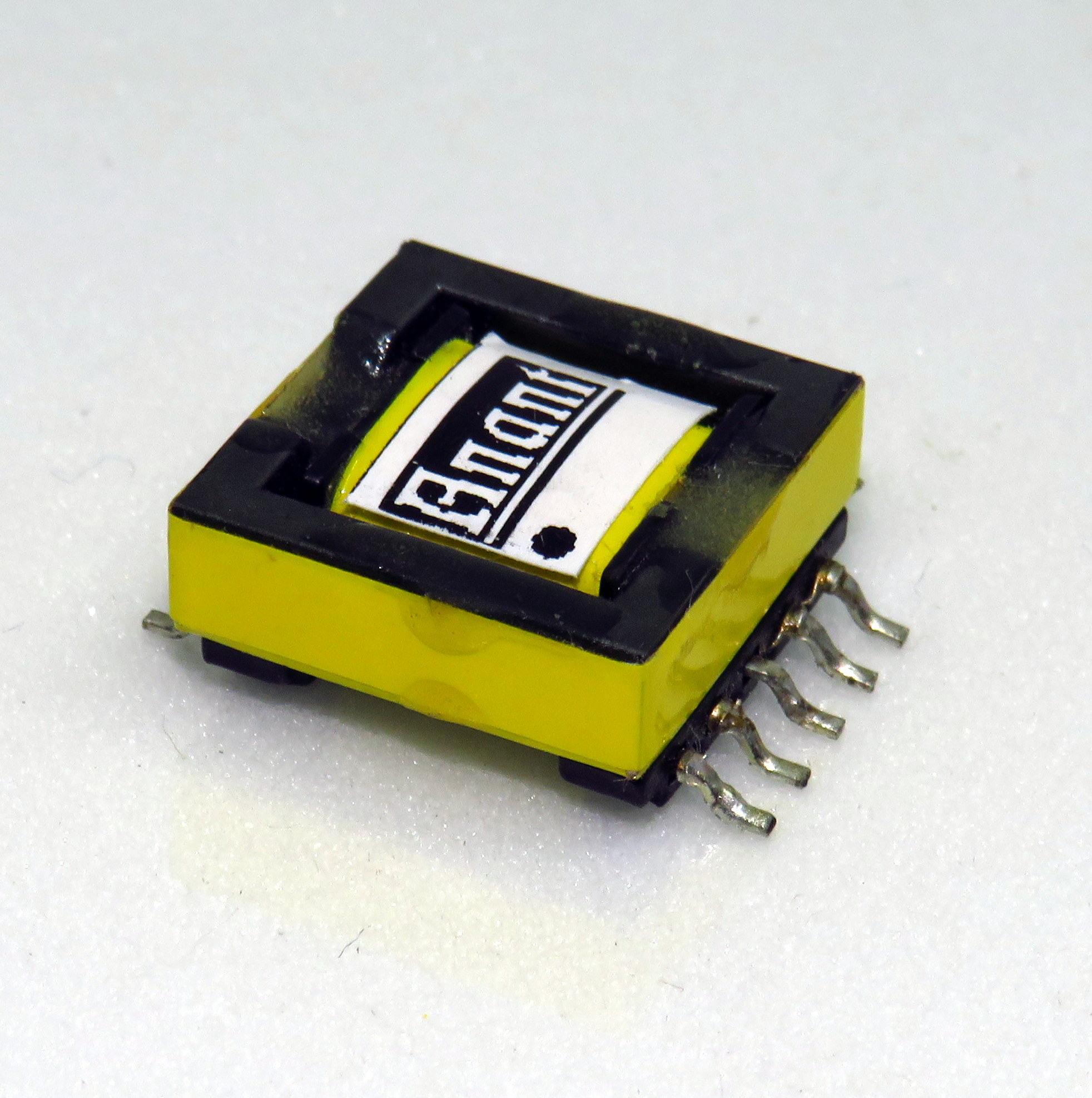

Core Size EFD15 Transformer
₹0.00
MOUNTING ::
- Pin-through-hole (PTH)
- Surface mount type (SMD)
- Horizontal mount
CORE DETAILS ::
| Core Size | EFD 15/8/5 |
| Core Base Material | MnZn |
| Core Le | 34mm |
| Core Ae | 5mm2 |
Product Specification Sheet:
Description
GENERAL INFORMATION ::
The industry standard flat design of EFD cores offers excellent space utilization for transformers and inductors. The optimized cross-sectional area is ideal for very flat compact transformer applications.
TYPICAL CHARATERSTICS ::
- Magnetics Shielding : Good
- Cost of Core : Average
- Cost of Winding & Assembly : Low
- Heat Dissipation : Very Good
APPLICATIONS ::
- Switch Mode Power Supplies (SMPS)
- DC/DC Converters
- Audio Transformers
- Impedance Matching
- Sensing Transformers
- Signal Distribution Transformers for communications.
- Pulse Transformers
- Isolation Transformers
Additional information
| Model | 10 Pin, 8 Pin |
|---|
