Core Size EFD20 Transformer

MOUNTING ::

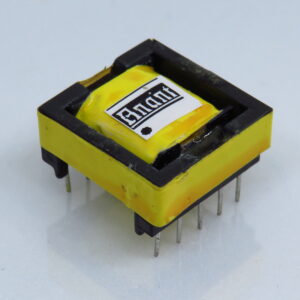

  • Pin-through-hole (PTH)

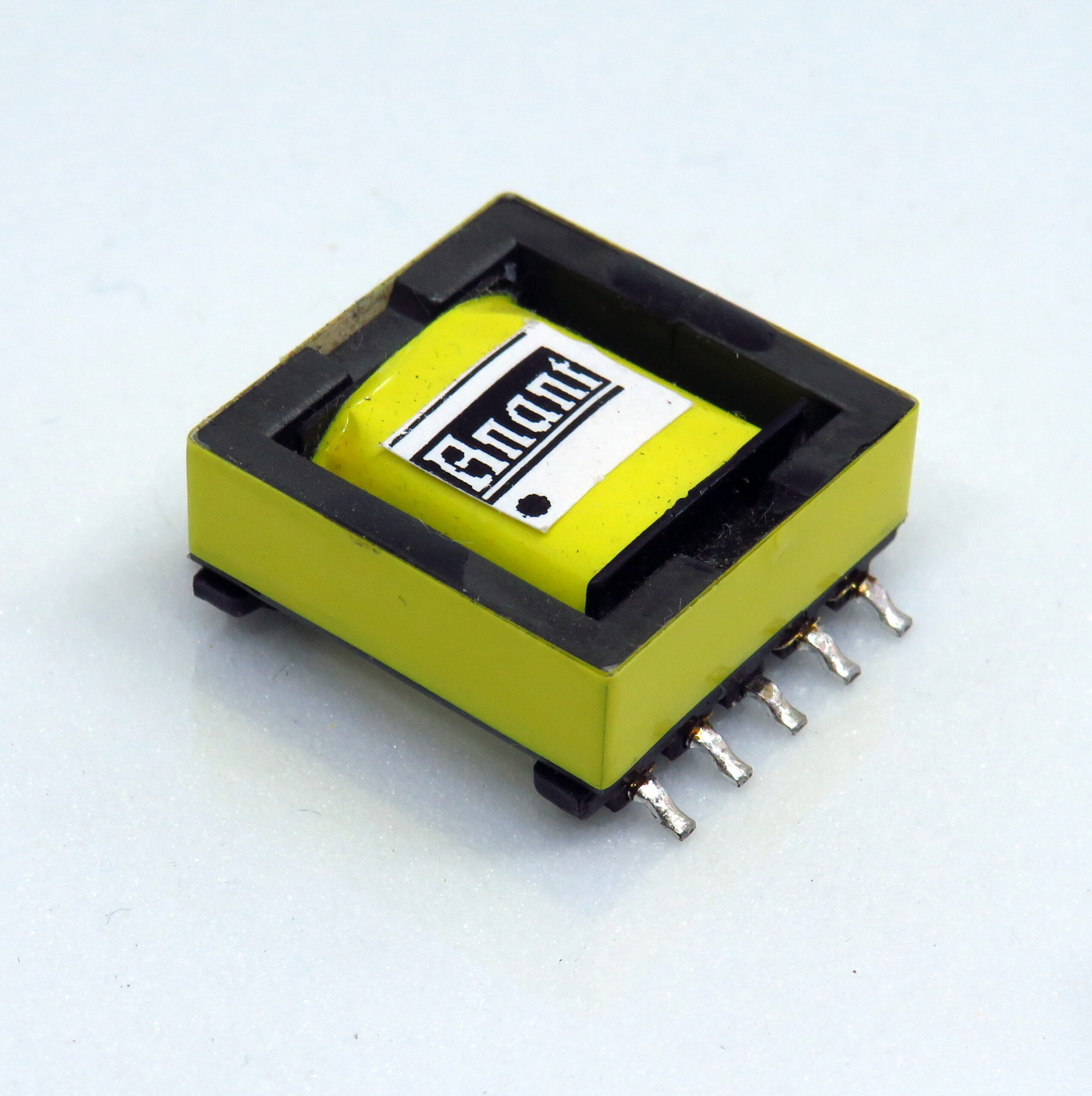

  • Surface mount type (SMD)
  • Horizontal mount

CORE DETAILS ::

Core Size EFD 20/10/7
Core Base Material MnZn
Core Le 47mm
Core Ae 31mm2



Product Specification Sheet:

Click here to Download/View the PDF

Categories: ,

Description

GENERAL INFORMATION ::

The industry standard flat design of EFD cores offers excellent space utilization for transformers and inductors. The optimized cross-sectional area is ideal for very flat compact transformer applications.



TYPICAL CHARATERSTICS ::

  • Magnetics Shielding                 :     Good
  • Cost of Core                                :     Average
  • Cost of Winding & Assembly  :     Low
  • Heat Dissipation                        :     Very Good



APPLICATIONS ::

  • Switch Mode Power Supplies (SMPS)
  • DC/DC Converters
  • Audio Transformers
  • Impedance Matching
  • Sensing Transformers
  • Signal Distribution Transformers for communications.
  • Pulse Transformers
  • Isolation Transformers
