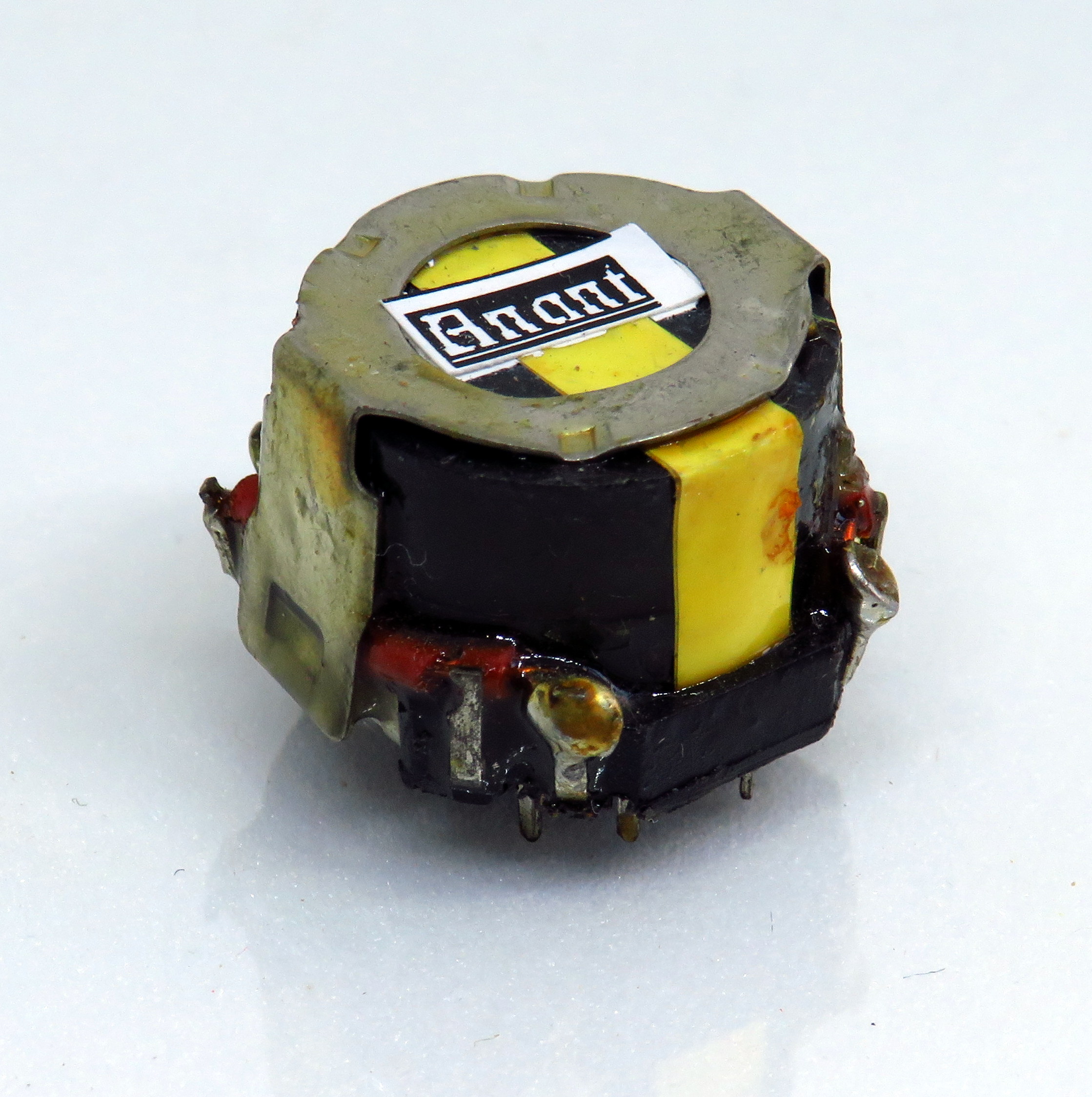

Core Size P/Pot 1408
MOUNTING ::
- Pin-through-hole (PTH)
- Horizontal mount
CORE DETAILS ::
| Core Size | P 1408 |
| Core Base Material | MnZn |
| Core Le | 19mm |
| Core Ae | 25.8mm2 |
Description
GENERAL INFORMATION ::

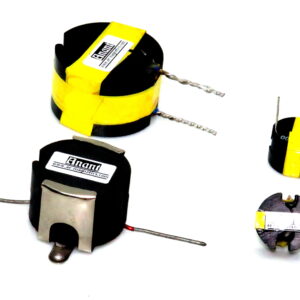

Pot Cores when assembled, nearly surround the wound bobbin. This aides in shielding the coil from pickup and EMI from outside sources.
TYPICAL CHARATERSTICS ::
- Magnetics Shielding : Excellent
- Cost of Core : High
- Cost of Winding & Assembly : High
- Heat Dissipation : Poor
- Uniform Cross Section : No
APPLICATIONS ::
- Switch Mode Power Supplies (SMPS)
- Wideband Transformers
- Differential Mode Inductors
- Power Inductors
- Tuned Transformers
- PFC
